Digital Solutions TKC1

Transport remote control interface for Rank Cintel MkIII telecine machines

The TKC1 is designed to control the transport of a Rank Cintel telecine machine to according to the commands received from an external edit controller using the Sony 9 pin serial protocol. The interface emulates a BVW-75 VTR and will report the timecode position and transport status of the telecine transport to the edit controller. The unit accepts external reference for 8 field colour phasing, and has a LTC output. The interface permits the use of the telecine as a source machine under the control of normal video edit controllers. Special software has been implemented to overcome the synchronisation difficulties associated with this type of telecine transport and enable repeatable, frame accurate edit operation.

A front panel backlit LCD display is used to provide visual indication of timecode position and transport mode. It is also used to modify certain user selectable system set-up values and to inform the operator of any problems detected such as no film loaded on the transport. Three additional LED indicators provide confidence checks for video sync input, correct serial communication with the edit controller, and transport position lock.

When the unit is switched on the timecode position of the unit will be set to 00:00:00:00. Once the telecine transport has been motioned to the desired reference frame using either commands from the edit controller, or manual control, the timecode position of the reference frame may be reset to zero, or preset to some other timecode value using the front panel push buttons. Any preset time which is entered is stored to permit a simple two button recall if desired. This timecode preset value, and certain other system values are held in a non-volatile RAM.

The interface is connected to the standard remote control and bi-phase output connectors of the Rank Cintel transport and will support three different transport models.

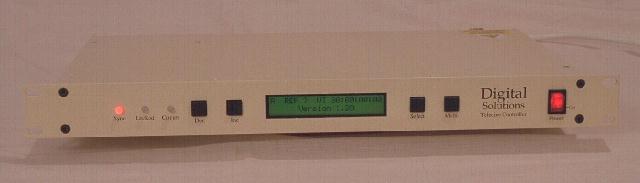

The TKC1 telecine interface

Front panel

• Iluminated 40 character LCD
• Four monentary push buttons
• Three tri-colour status indicators
• Illuminated power switch

Rear panel connectors

• IEC mains input socket - 100 - 250 VAC 45-65 Hz

• 1A(T) 20mm fuseholder

• LTC output - XLR 3 pin male connector.

• External Transport socket. - 25 pin D socket with screwlock fixing posts.
  2 Biphase A & B inputs
  7 transport lamp tally inputs
  8 transport function outputs
  1 shuttle control voltage output
  1 frame store freeze control output
  1 transport 0 volts connection

• External Control panel socket. - 15 pin D socket
  8 field enable switch
  Local/Remote switch
  Local Run switch
  Preset transport time switch
  Zero transport time switch
  Feeds to phase monitor LEDs and buzzer
  1 auxiliary RS422 input
  1 auxiliary RS422 output

• Edit Controller socket. - 9 pin D socket
  The socket is configured as a controlled device as described in the Sony protocol documentation.

• Sync Ref In socket. - 75ohm BNC socket. Terminated by setting switch A1 to ON. The video sync signal is used to reference the speed and phase of the virtual machine and to derive timing information to optimise telecine machine control. The reference may be one of the following :-
  Black and burst
  Composite video with EBU field indent
  SPG field 1 pulse


• 8 way external setup switch bank

Overall Dimentions

• The unit is housed in a 1U 19" enclosure.
